Lowrance

Lowrance ActiveTarget 2

Lowrance ActiveTarget 2

$1,399.00 USD
$1,399.00 USD
Sale Sold out
Model

Description

ActiveTarget® 2 gives you the highest resolution, widest, and clearest live views of fish and structure. By watching fish respond to your lure in real-time, you can make the quick adjustments that make the difference and help you catch more fish.

Key Features

  • High-resolution, live action images clearly reveal what’s happening underwater in real time
  • Clearest live action views of fish and structure
  • Widest underwater images for quicker interpretation

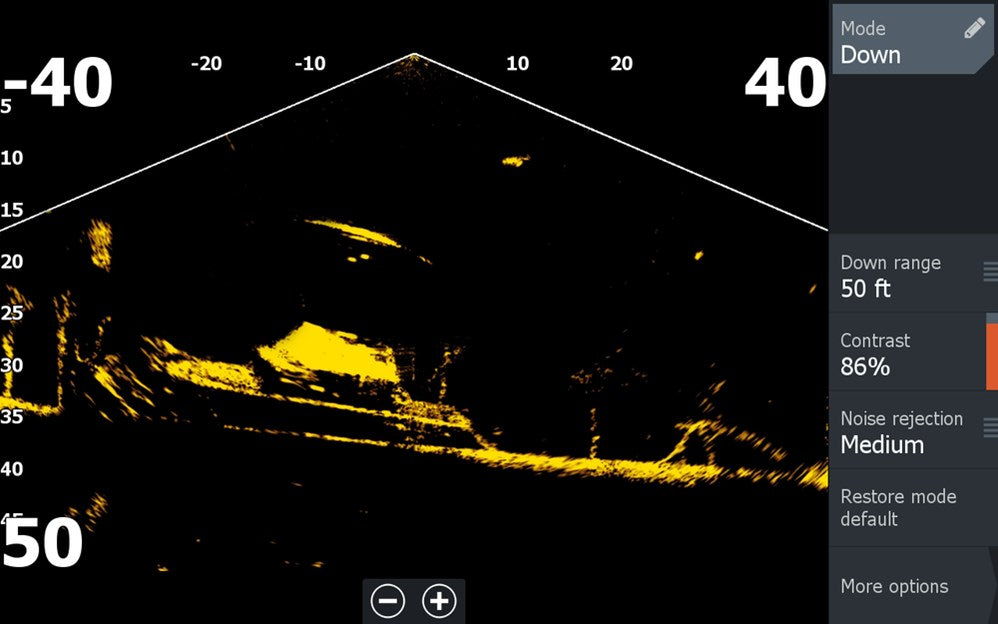

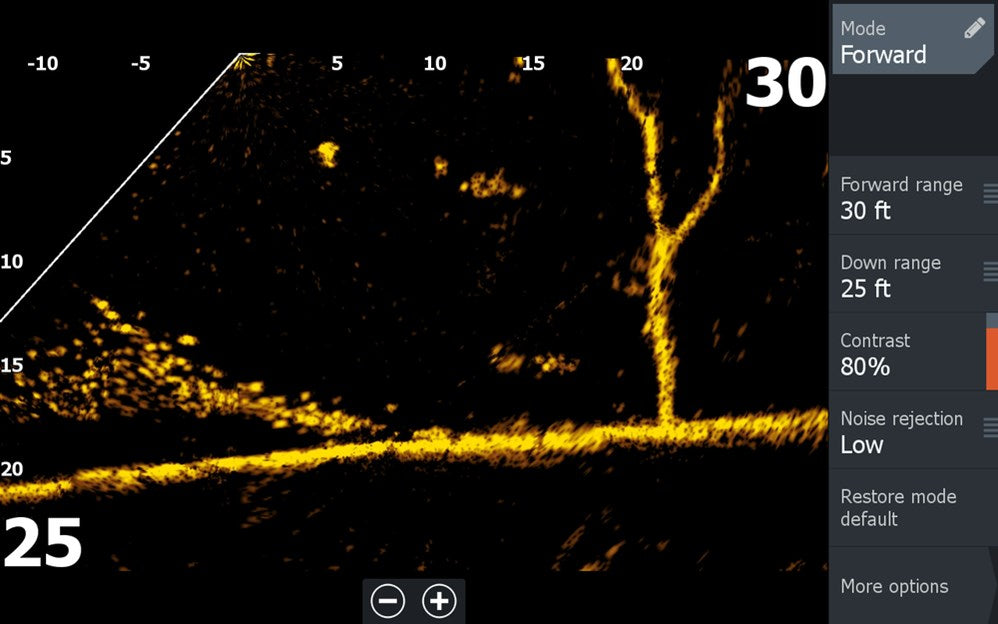

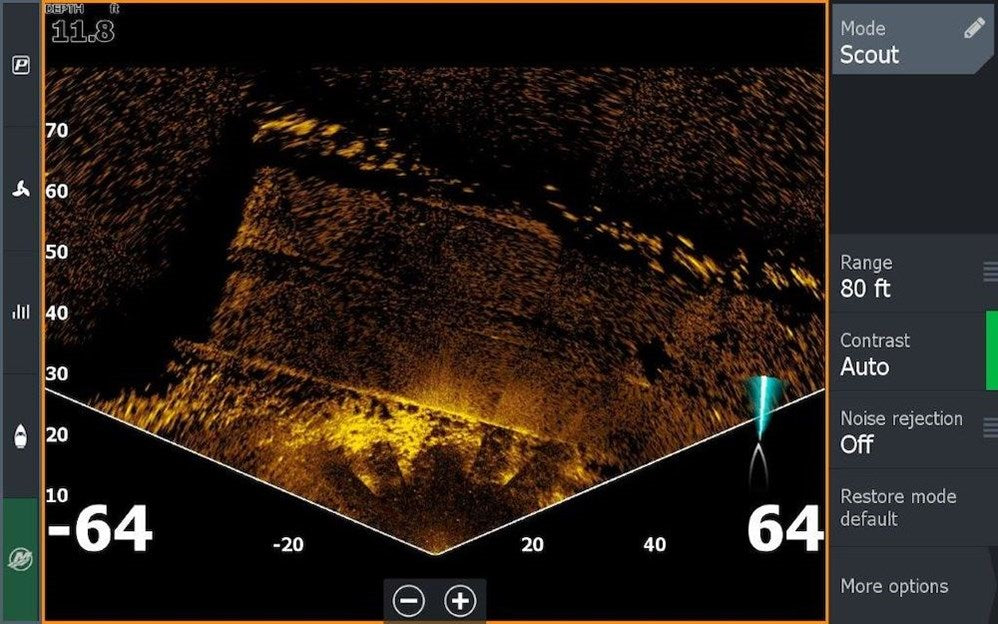

  • See all around your boat with Forward, Down and Scout views
  • See multiple views simultaneously and enable Forward+Back and Scout Wide views for more effective bait tracking ahead of boat with second optional ActiveTarget 2 transducer
  • Compatible with HDS LIVE, HDS Carbon and Elite FS

Specifications

Connectivity

Ethernet Ports : Yes: 1 - 100 Mbit Ethernet Port

Electrical

Power Consumption max : 1.5A @ 13.8VDC
Power Consumption typical : 1.5A @ 13.8VDC
Recommended Fuse Rating : 5A
Supply Voltage : 10.8 VDC - 31.2 VDC

Environment

Humidity : 60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range : 5°F to 131°F (-15°C to 55°C )
Shock Vibration : 100,000 cycles of 20 G
Storage Temperature Range : -22°F to 158°F (-30°C to 70°C )
Waterproof rating : IP67

Physical

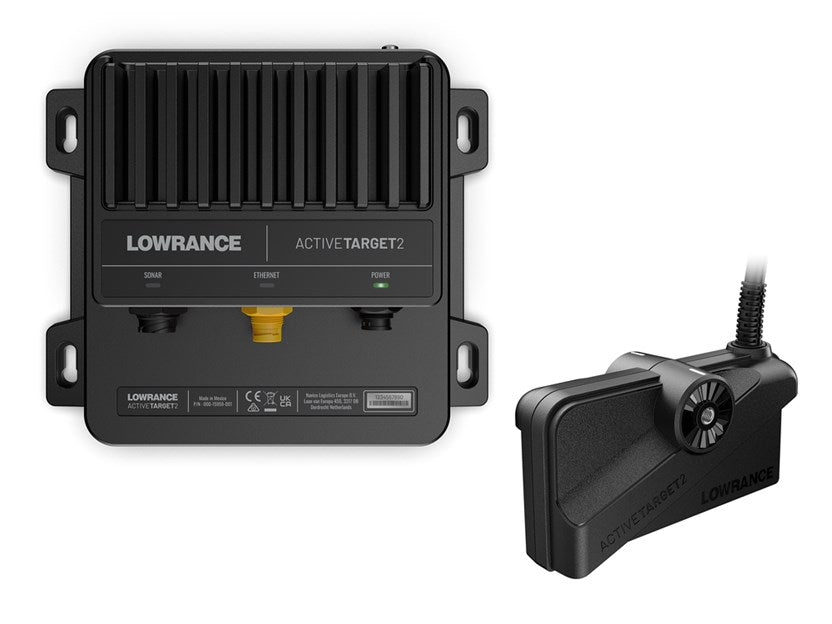

Dimensions W x H x D : Module: 8.63" (219.3mm) x 7.56" (192.1mm) x 2.86" (72.9mm); Transducer: 5.90" (149.8mm) x 3.24" (82.4mm) x 2.28" (58.0mm)
Mounting Type : Module: Surface Mount; Transducer: Bracket Mount
Weight : Module: 4.12 lbs (1.86 kg); Transducer: 2.67 lbs (1.21 kg)

Other

Interface : Ethernet to: HDS Pro, HDS Live, HDS Carbon, Elite FS
