Lowrance

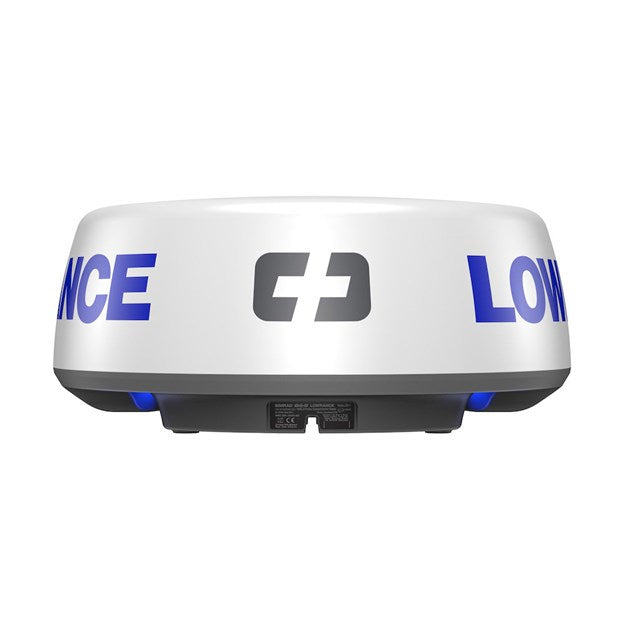

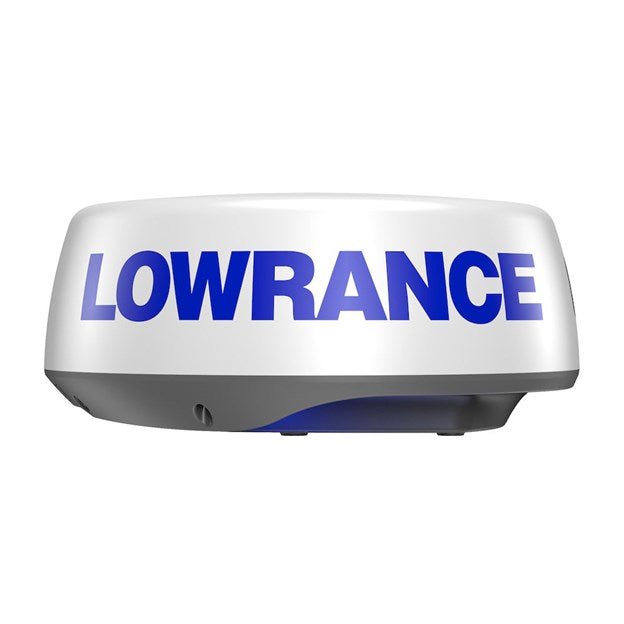

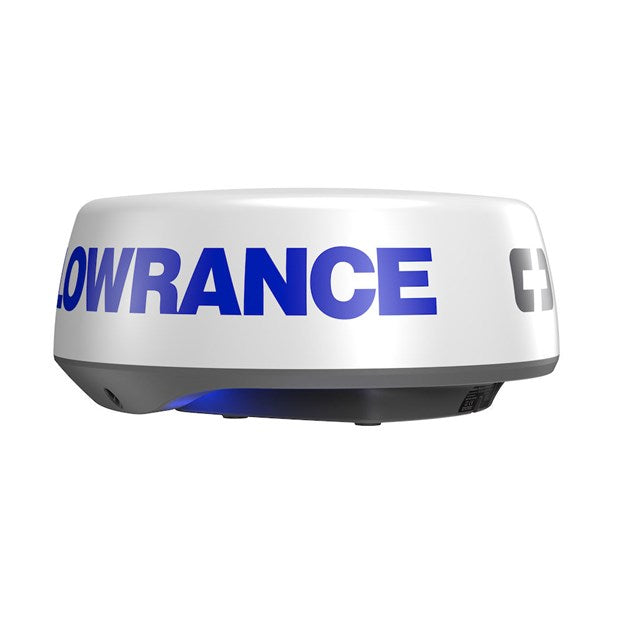

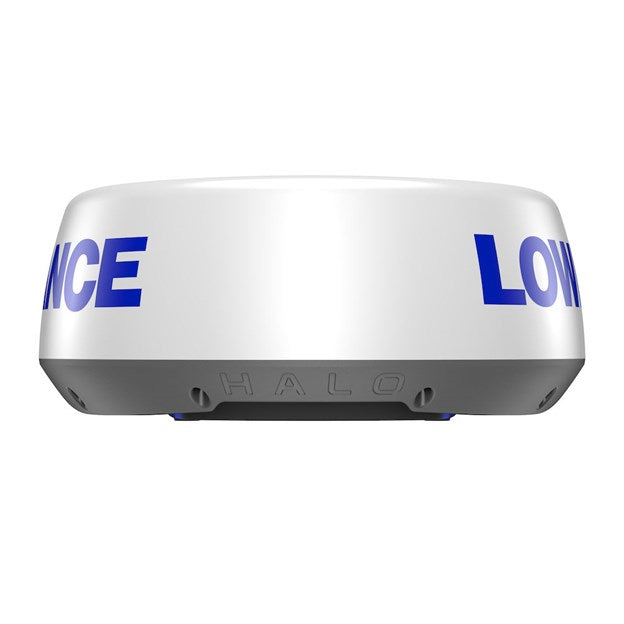

Lowrance Halo 20+ Radar, One Size (000-14542-001)

Lowrance Halo 20+ Radar, One Size (000-14542-001)

$2,499.00 USD
$2,499.00 USD
Sale Sold out

Description

Get an almost real-time view with HALO20+. Industry-leading 60 RPM operation at close range provides the best in collision avoidance. Identify hazards instantly with VelocityTrack™ Doppler technology, and enjoy both short and long-range coverage—up to 36 nautical miles—from a compact 20-inch dome antenna.

Key Features

  • 36 nm range from a compact 20-inch dome
  • Advanced pulse compression technology with beam sharpening
  • Simultaneous Dual Range operation sees both near and far
  • Ultra-fast 60 RPM operation at ranges up to 1.5 nm
  • VelocityTrack™ Doppler technology for collision avoidance
  • Easy operation with harbour, offshore, weather, and bird modes
  • MARPA target tracking (up to 10 targets, 20 in dual range)
  • Ready instantly from standby

Specifications

Approvals

Approvals: ComplianceFCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety

Electrical

Power Consumption max: 29W
Power Consumption typical: 20W
Recommended Fuse Rating: 5A
Supply Voltage: 10.5 - 31.2 VDC (12/24V systems)

Environment

Humidity: 95% RH at 35°C (95°F)
Operating Temperature Range: -25° to + 55°C (-13° to +130°F)
Waterproofrating: IPX6

Physical

Dimensions W x H x D: 510mm dia x 223 mm H. (20" dia x 8.8" H)
Weight: 5.9 kg (13 lbs) without cable

Radar

Beam width: 4.9° H nominal (-3dB) 2.5° with target separation on high x 25° V
Max Range, scale: 36 NM
Max Wind Speed: 100 knots (51 m/s)
Min Range, scale: 50 m / 200 ft / 50 yd
Radar Modes: Harbour, Offshore, Weather, Bird, Dual Range, North Up, Course Up, Relative motion, True Motion
Radar Technology: Pulse Compression
Rotation speed: Up to 60 RPM (Range Dependent)

Other

Interface: Lowrance MFD

Warranty

Limited brand warranty
